实现真实的机柜模拟图[原创]

刘天斯 , 2010/07/09 10:42 , C/C++ , 评论(11) , 阅读(54557) , Via 本站原创

一般能反映机房设备位置、结构我们都喜欢通过网络拓扑图来展现，但个人感觉还不够直观、明了的表现出自己想要的结果(自己太挑剔了，呵呵)。因此写一个生成真实机柜模拟图平台，实现与真实服务器外观、服务状态、空闲位置等信息。
在线效果图
http://blog.liuts.com/idc/
系统截图

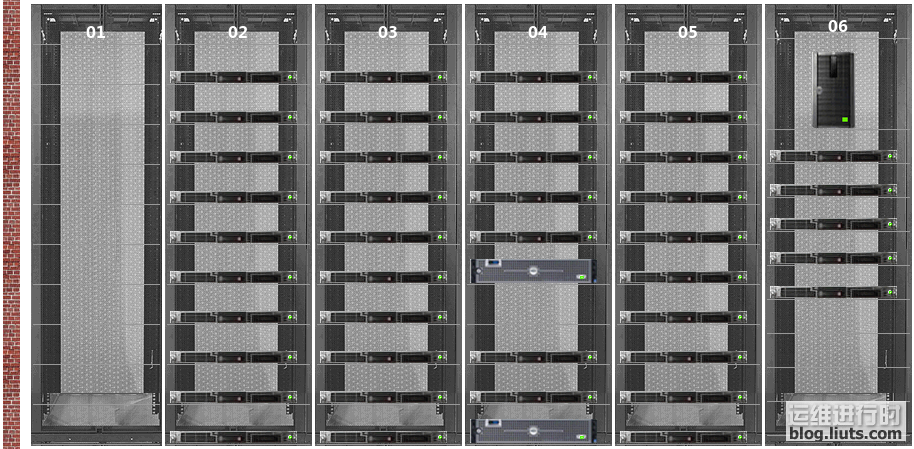

1、平台显示某一排截图

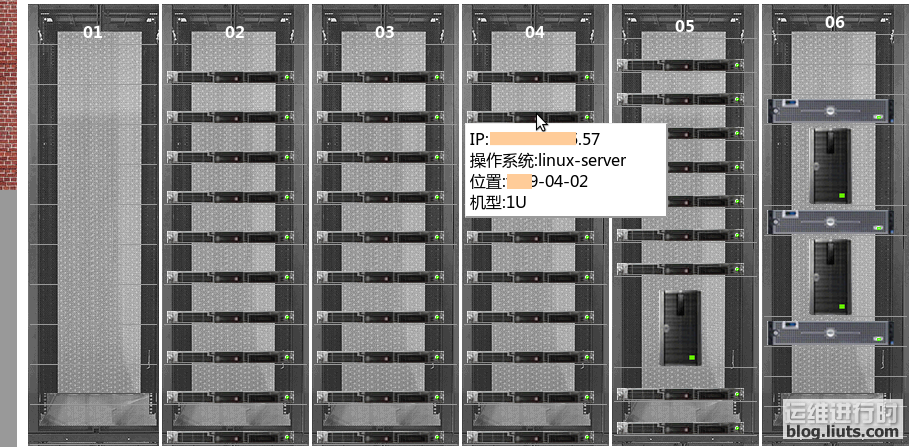

2、平台显示某台服务器详细信息截图

3、状态说明

2U服务器正常状态

2U服务器当机状态

系统原理
通过获取运维平台的服务器信息(包括位置、操作系统、机型等)，格式为XML，通过c++的tinyxml来解析并渲染成比较美观的HTML格式。当机的信息通过Nagios来获取。这样就可以生成非常人性化的展现平台了：）

系统代码Servermap.cpp

/***************************************************************************
 *   Copyright (C) 2010 by Liu Tiansi   *
 *   liutiansi@gmail.com   *
 *                                                                         *
 *   This program is free software; you can redistribute it and/or modify  *
 *   it under the terms of the GNU General Public License as published by  *
 *   the Free Software Foundation; either version 2 of the License, or     *
 *   (at your option) any later version.                                   *
 *                                                                         *
 *   This program is distributed in the hope that it will be useful,       *
 *   but WITHOUT ANY WARRANTY; without even the implied warranty of        *
 *   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the         *
 *   GNU General Public License for more details.                          *
 *                                                                         *
 *   You should have received a copy of the GNU General Public License     *
 *   along with this program; if not, write to the                         *
 *   Free Software Foundation, Inc.,                                       *
 *   59 Temple Place - Suite 330, Boston, MA  02111-1307, CN.             *
 ***************************************************************************/

#include <iostream>
#include <vector>
#include <string>
#include <fstream>
#include "tinyxml.h"
#include "tinyxml.cpp"
#include "tinystr.h"
#include "tinystr.cpp"
#include "tinyxmlparser.cpp"
#include "tinyxmlerror.cpp"

using namespace std;

class servermap {

public:
    servermap( string *serverrow,string _idctype);
    ~servermap();
    string int2str( int num);
    void Getdownserver ();
    string writefile (string filename);
    string GetServerCondition (string ip,string servertype);
    string (*displayXmlDocument_info (string filename))[5];
    void ProduRow();
    void ProduCurrServer();

private:
    string idctype;
    string (*p_info)[5];  // 所有的服务器信息指针(从XML文件中遍历);
    string (*pserver_info)[5];  // 当前机房的服务器信息指针(从XML文件中遍历);
    string ServerInfo[800][5];  // 所有的服务器信息数组(从XML文件中遍历);
    string ServerInfo_CurrServer[300][5];  //当前机房数组，从ServerInfo中过滤出来;
    string ServerDownIP[50];    //当服务器清单；
    int ServerInfoNumber;  //获取所有信息的有效行;
    string *CurrServer_row;  //指向当前机房数组的指针;
    int CurrServerInfoNumber;  //获取当前机房信息的有效行;
    string HTMLstr;    //存储HTML串;
};

//构造func,传入排数及机房类型；
servermap::servermap( string *Serverrow,string _idctype)
{
  idctype=_idctype;
  //初始化HTML头；
  HTMLstr="<html>\n<head>\n<meta http-equiv=\"Content-Type\" content=\"text/html; charset=utf-8\"  content=\"5\">\n<title>服务器模拟状态图</title>\n";
  HTMLstr+="<script src='/js/server_top.js' language='javascript'></script>\n";

  //机房排数组；
  CurrServer_row=Serverrow;
  ServerInfoNumber=0;
  CurrServerInfoNumber=0;

//获取当前服务器清单；
  Getdownserver();

//遍历所有服务器信息；
  displayXmlDocument_info("ServerInfoAll.xml");

//简化当前机房服务器清单；
  ProduCurrServer();
}

//类虚构func，销毁创建的指针；
servermap::~servermap()
{
  //clear mem;
}

//整形转字符串方法；
 string servermap::int2str( int num)
{
    if (num == 0 )
       return " 0 ";
    string str = "" ;
    int num_ = num > 0 ? num : - 1 * num;

while (num_)
    {
       str = ( char )(num_ % 10 + 48 ) + str;
       num_ /= 10 ;
    }

if (num < 0 )
       str = " - " + str;
    return str;
}

//返回服务器状态图片；
string servermap::GetServerCondition (string ip,string servertype)
{
  bool Obtaining=false;
  for (int i=0;i<50;i++)
  {
    if (ServerDownIP[i]==ip)
    {
      Obtaining=true;
      break;
    }
  }

if (servertype=="1U")
  if (Obtaining)
    return "1u_down.gif";
  else return "1u_normal.gif";

if (servertype=="2U")
  if (Obtaining)
    return "2u_down.gif";
  else return "2u_normal.gif";

if (servertype=="6U")
  if (Obtaining)
    return "ta_down.gif";
  else return "ta_normal.gif";
}

//获取当机服务器清单，从文件中获取；
void servermap::Getdownserver()
{
  string mainpath="/ServerDownlist";
  string ip;
  ifstream FileObject;
  FileObject.open(mainpath.c_str(),ios::in);
  int i=0;
      while(getline(FileObject,ip))
      {
    ServerDownIP[i]=ip;
    i+=1;
  }
     FileObject.close();
}

//写配置文件方法，形参为文件名；
string servermap::writefile(string filename)
{
  string mainpath="/www/webroot/"+filename;
  ofstream FileObject;
  FileObject.open(mainpath.c_str(),ios::out);
  FileObject<<HTMLstr<<endl;
     FileObject.close();
  return "1";
}

//获取XML文件服务器信息数据到指针；
string (* servermap::displayXmlDocument_info(string filename))[5]
{
  TiXmlDocument doc(filename.c_str());
  doc.LoadFile();
  TiXmlElement *root_r = doc.RootElement();
  //static vector<vector<string> > ClassInfo(m,vector<string>(n));
  int i=0;
  for(TiXmlNode *node = root_r->FirstChild(); node; node = node->NextSibling())
  {
    //输出元素节点名称;
    //cout << node->Value() << endl;

//遍历输出节点属性名称及值;
    if (node->Type() == TiXmlNode::ELEMENT)
    {
      for(TiXmlAttribute *attr = node->ToElement()->FirstAttribute(); attr; attr = attr->Next())
      {
        cout << "    " << attr->Name() << " =: " << attr->Value() << endl;
      }
    }
    //遍历输出子节点名称及值;
    TiXmlNode *child = node->FirstChild();
    int j=0;
    while(child)
    {
      int type = child->Type();
      if (type == TiXmlNode::ELEMENT)
      {
        ServerInfo[i][j]=child->ToElement()->GetText();
      }
      child = node->IterateChildren(child);
      j+=1;
    }
    i+=1;

}
  ServerInfoNumber=i;
  p_info=ServerInfo;
  //free(ClassInfo);
}

//生成当前机房数组;
void servermap::ProduCurrServer()
{
  const char * strtmp;
  string strswap,stradd,Position0,Position1,Position2,Position3;

for (int i=0;i<10;i++)
  {
    if (CurrServer_row[i]=="")
      break;
    for (int j=0;j<ServerInfoNumber;j++)
    {
      strswap=*(*(p_info+j)+3);
      strtmp=strswap.c_str();
      Position0=strtmp[0];
      Position1=strtmp[1];
      Position2=strtmp[2];
      Position3=strtmp[3];
      if (idctype=="idc")
        stradd=Position0+Position1;
      else
        stradd=Position0+Position1+Position2+Position3;
      if (stradd==CurrServer_row[i])
      {
        CurrServerInfoNumber+=1;
        ServerInfo_CurrServer[CurrServerInfoNumber][0]=*(*(p_info+j)+0);
        ServerInfo_CurrServer[CurrServerInfoNumber][1]=*(*(p_info+j)+1);
        ServerInfo_CurrServer[CurrServerInfoNumber][2]=*(*(p_info+j)+2);
        ServerInfo_CurrServer[CurrServerInfoNumber][3]=*(*(p_info+j)+3);
        ServerInfo_CurrServer[CurrServerInfoNumber][4]=*(*(p_info+j)+4);
      }
    }
  }
  pserver_info=ServerInfo_CurrServer;
}

//生成服务器拓扑状态图；
void servermap::ProduRow()
{
  string point_moddle_key="-0";
  string point_moddle="";
  string point_last="";
  string point_all="";
  string substrServer="";
  string DIVstr="";
  int allservercount=0;
  //所有机柜循环体;
  for (int i=0;i<10;i++)
  {
    if (CurrServer_row[i]=="")
      break;

//当前排循环体;
    if (idctype=="idc")
      HTMLstr+="<div align=center>"+CurrServer_row[i].substr(0,2)+"排</div>\n";
    else
      HTMLstr+="<div align=center>"+CurrServer_row[i].substr(2,2)+"排</div>\n";
    HTMLstr+="<table width='1024' border='0' cellpadding='1' cellspacing='3' bgcolor='#ffffff' class='jjtable'>\n";
          HTMLstr+="<tr align='center' valign='top'>\n";

for (int j=1;j<=7;j++)
    {
      point_moddle=point_moddle_key+int2str(j);
              HTMLstr+="<td width='147' bgcolor='#eeeeee' background=\"/images/serverico/jg.gif\" >\n";
      //HTMLstr+="<td width='147' style=\"BACKGROUND: url(/images/serverico/jg.gif) #edf6fb repeat-y 0px 0px;\">\n"  ;
      HTMLstr+="<table width='99%' height='440'  border='0' cellpadding='1' cellspacing='0'>\n";
            HTMLstr+="<tr>\n";
              HTMLstr+="  <td height='30' align='center' valign='bottom'  class='jgtable'><font class=jgtitle>0"+int2str(j)+"</font></td></tr>\n";

//当前列循环体;
      for (int k=1;k<=10;k++)
      {
        if (k==10)
          point_last="-10";
        else
          point_last=point_moddle_key+int2str(k);
        point_all=CurrServer_row[i]+point_moddle+point_last;

HTMLstr+="<tr>\n";
        HTMLstr+="  <td height='30' align='center' valign='bottom' class='jgtable'>\n";

for (int m=0;m<=CurrServerInfoNumber;m++)
        {
          //过滤空元素；
          //cout<<point_all<<"=="<<*(*(pserver_info+j)+3)<<endl;
          substrServer=*(*(pserver_info+m)+3);
          if (idctype=="idc")
            substrServer=substrServer.substr(0,8);
          else
            substrServer=substrServer.substr(0,10);
          if (point_all==substrServer)
          {
            DIVstr+="IP:"+*(*(pserver_info+m)+0)+"<br/>";
            DIVstr+="操作系统:"+*(*(pserver_info+m)+2)+"<br/>";
            DIVstr+="位置:"+*(*(pserver_info+m)+3)+"<br/>";
            DIVstr+="机型:"+*(*(pserver_info+m)+4)+"<br/>";
            if (*(*(pserver_info+m)+4)=="1U")
              HTMLstr+="<img src='/images/serverico/"+GetServerCondition(*(*(pserver_info+m)+0),"1U")+"' width='127' height='12' style=\"vertical-align:bottom;\" onmouseover=\"displayDIV('operate"+int2str(allservercount)+"'); return false\" onmouseout=\"hiddenDIV('operate"+int2str(allservercount)+"'); return false\">";
            else if (*(*(pserver_info+m)+4)=="2U")
              HTMLstr+="<img src='/images/serverico/"+GetServerCondition(*(*(pserver_info+m)+0),"2U")+"' width='127' height='24' style=\"vertical-align:bottom;\" onmouseover=\"displayDIV('operate"+int2str(allservercount)+"'); return false\" onmouseout=\"hiddenDIV('operate"+int2str(allservercount)+"'); return false\">";
            else  HTMLstr+="<img src='/images/serverico/"+GetServerCondition(*(*(pserver_info+m)+0),"6U")+"'  height='76' style=\"vertical-align:bottom;\" onmouseover=\"displayDIV('operate"+int2str(allservercount)+"'); return false\" onmouseout=\"hiddenDIV('operate"+int2str(allservercount)+"'); return false\">";

HTMLstr+="<div id=\"operate"+int2str(allservercount)+"\" style=\"filter:Alpha(opacity=90);display:none;position:absolute; width:200px;BORDER-RIGHT: 2px outset; BORDER-TOP: 1px outset; BACKGROUND: #ffffff; BORDER-LEFT: 1px outset; BORDER-BOTTOM: 2px outset; text-align:left;\"><table cellpadding=\"3\" cellspacing=\"1\"><tr><td>"+DIVstr+"</td></tr></table></div>\n";
            allservercount+=1;
            DIVstr="";
            break;
          }

        }
        HTMLstr+=" </td>\n";
        HTMLstr+="  </tr>\n";
      }
      HTMLstr+=" </table>\n";
      HTMLstr+="</td>\n";

}
    HTMLstr+="</tr>\n";
      HTMLstr+="</table>\n";
        HTMLstr+="<p> </p>\n";
  }
  HTMLstr+="<script src='/js/server_down.js' language='javascript'></script>\n";
}

//类入 口main()，接受用户参数；
int main()
{
  string * row;
  string idctype="";

//定义机柜排号;
  string IDCA[10]={"01","02","03","04","05","06"};
  string IDCC[10]={"18","19","20"};

//IDC A
  idctype="idc";
  row=IDCA;
  servermap appa(row,idctype);
  appa.ProduRow();
  appa.writefile("idca.html");
  //IDC C
  idctype="idc";
  row=IDCC;
  servermap appc(row,idctype);
  appc.ProduRow();
  appc.writefile("idcc.html");

//free(p);
  return 0;
}

XML数据格式

如大家有什么疑问或感兴趣的话题可以通过weibo与我交流：http://t.qq.com/yorkoliu

Tags: 模拟机柜 , c++

C++&pyth

little7802

2016/02/25 10:10

有没有详细的安装教程，安装完了怎么运行

beijixiaolan

2015/05/09 15:14

请问ServerMap1.1版本在哪里下载，网上没找到，谢谢

2015/04/08 11:32

怎么实现自动检测宕机呢？

刘天斯回复于 2015/04/10 15:14

与nagios结合。

铝塑板

2014/07/31 21:18

太牛B了，谢谢分享

yutaka

2011/11/07 13:55

刘兄你好，请问ServerMap1.1版本在哪里下载？？多谢

sinorain

2011/04/21 17:42

我在安装编译时也是提示/home/liuts/xxxxx 这个错误。

ltjong

2010/12/01 09:02

感谢分享！
按README编译时总提示/home/liuts/xxxxx，然后看了一下有太多地方有这个了，没有一个配置文件可以更改的吗？

编译出servermap后不能用./servermap 运行？

请帮助，谢谢

刘天斯回复于 2010/12/01 11:14

ServerMap1.1版已经修复。

一路狂飙

2010/11/11 14:31

小弟看了佩服的五体投地！佩服，佩服！

路人甲

2010/07/24 11:25

咦我怎么看把HTML代码封装到了C++里面了。为啥不把UI的东西拿出来呢？现在不是提倡所谓MVC分层设计理念嘛。

刘天斯回复于 2010/07/24 14:09

仁兄说得很有道理，由于是一个小项目所以我都放在一块处理了。

lilib

2010/07/11 19:56

刘老大一出手必是精品，呵呵。

forget

2010/07/11 01:43

太牛B了，关注ing
